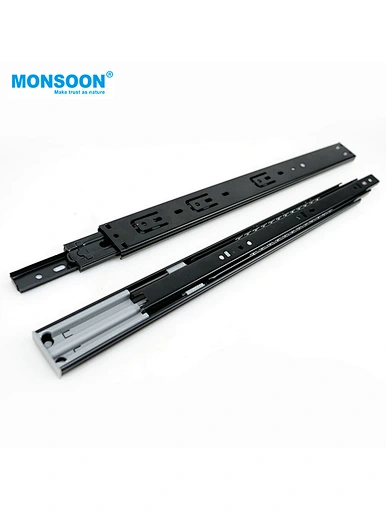

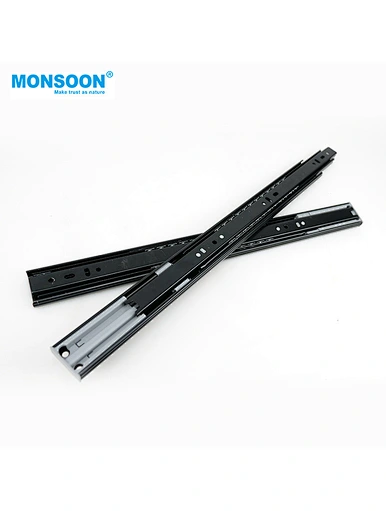

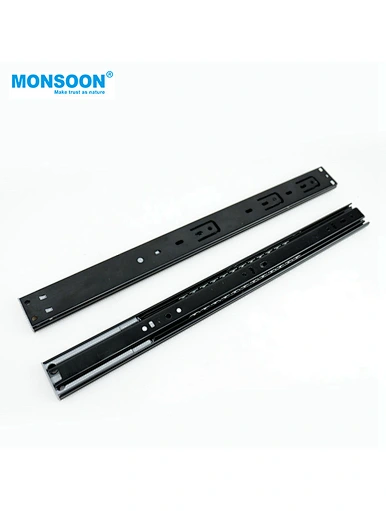

Material | Cold-rolled Steel |
Finishing | Blue zinc plated / Black electrophoresis |
Width | 37mm |
Length | 10'',12'',14'',16'',18'',20'',22'',24''(250mm-600mm) |
Thickness | 0.8*0.8*0.8 / 0.9*0.9*0.9 /1.0*1.0*1.0 |
Side space | 12.7mm |
Loading capacity | 15KG |
Load test | 50000 cycles pa ssed |
Differences between our products and other products
1. MONSOON Hole: 35/42/45mm ball bearing slide produced by the MONSOON factory can be shared the same set of MONSOON Hole
2. Much higher than the electroplating effect of peer products.
3. More stringent weight control of material.
4. We continue to upgrade the processs in order to saving costs for customers.
Our advantages
1. We offer higher quality products，in the products of same price.
2. We offer cheaper price，in the products of same quality.
3. Our factories are large in scale and highly automated. Perfect after-sales service and supporting services.
How can we create benefits for you？
1. We offer higher quality products，in the products of same price.
----Generally speaking，the error of each gram weight of ball bearing rail is controlled within 2g by manufacturer . MONSOON controls the
production of products more strictly.We require that the error of each gram weight of ball bearing rail must be controlled within 1g.
Under the same price and raw materials, controlling the product gram weight tolerance, which further protect the interests of customers.
----Our electroplating liquid will be replaced continuously, only a part of products will be electroplated each time, and a new electroplating
liquid will be replaced after a batch of products is electroplated, which makes our electroplating effect better. And while the cost of the
electroplating liquid increases, we do not add the cost to the customer's cost, but bear it internally. Our company vision is to be the most
satisfied hardware brand, so the product quality will be better at the same price.
----The company's control of product quality - we have professional quality check team.They will pay attention to the production of products
in factory , conduct irregular inspections, and at least 3 times inspections for each product to ensure product quality and delivery.The labor
costs of Q&C person is not added to the customer's cost, and the customer's cost has not increased, but the product quality is more guaranteed.
2. We offer cheaper price，in the products of same quality.
----Our company has a high degree of automation, high production efficiency, and a special person to monitor the production process, so the
product quality is stable, the production cost of the product is reduced, and the price of the product is cheaper.
----We have strong production capacity and a large amount of material procurement, and will carry out centralized procurement, which
will reduce the purchase price of our materials, thereby reducing the production cost of the product and the final product price.
Because the purchased materials are all in the same batch and the material density is the same, there is basically no deviation in the
product quality, and the quality provided is relatively better.
---MONSOON Process upgrade:

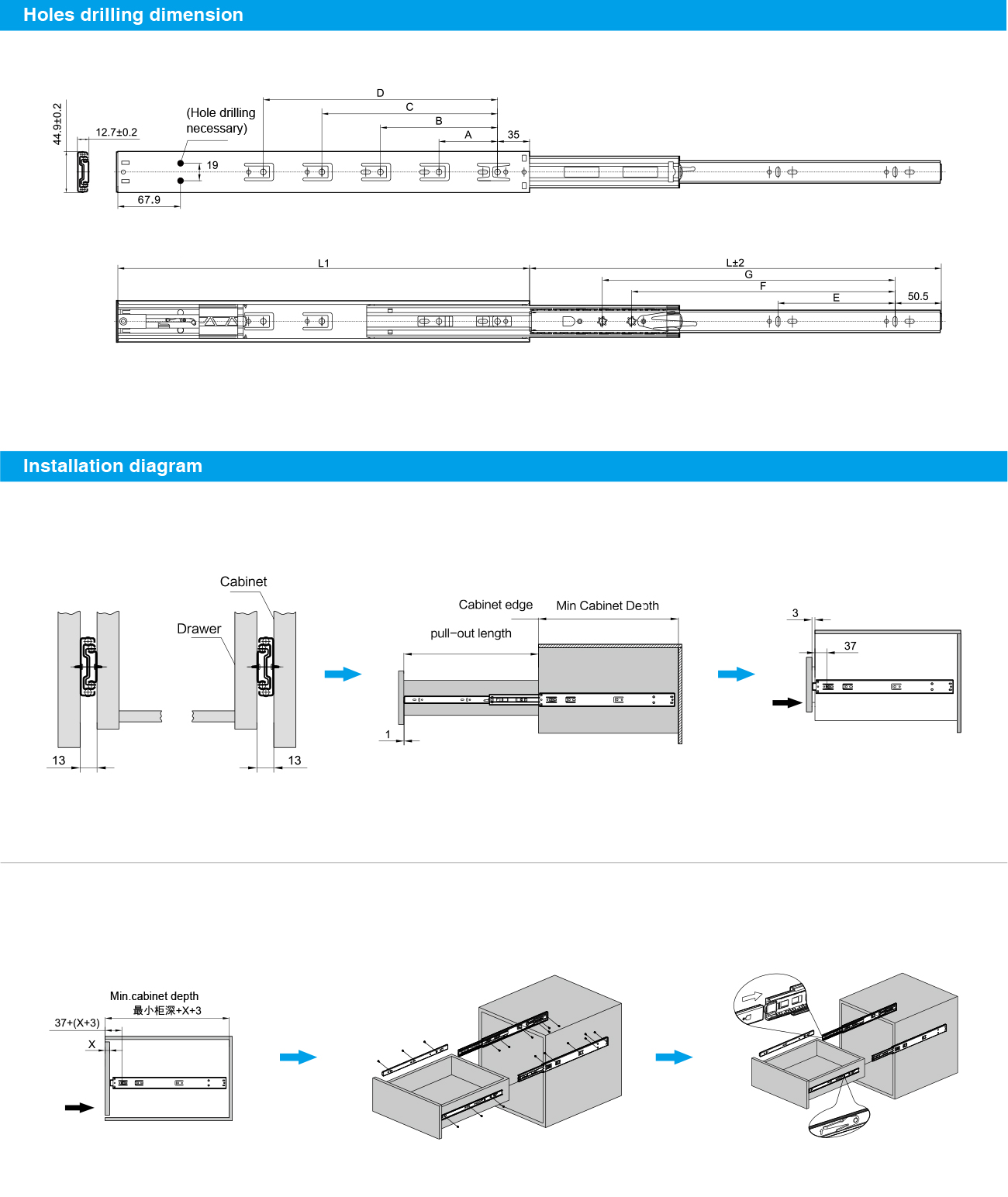

We have a set of exclusive holes. called MONSOON hole.
The Monsoon hole is suitable for slide of 35mm / 42mm/45mm width. When replacing products, there is no need to re-drill holes,
reducing labor and time costs. Of courser, there are conventional holes, we still reserve two processes for customers to choose.
3. Build trust with professional knowledge and solve all customer needs.
----We have the best quality products, complete price concessions and additional value-added services after working with customers.
----We are a professional manufacturer of furniture hardware, which can provide customers with one-stop shopping for the products they need.
We have professionals to solve the complete needs of customers.
----We can provide customers with various information in the market, such as market hot products, material price trends, etc.,
and provide professional purchasing suggestions.
——
We want to be the most satisfied hardware brand，
Let customers buy the most cost-effective products.
Testing Report & video
