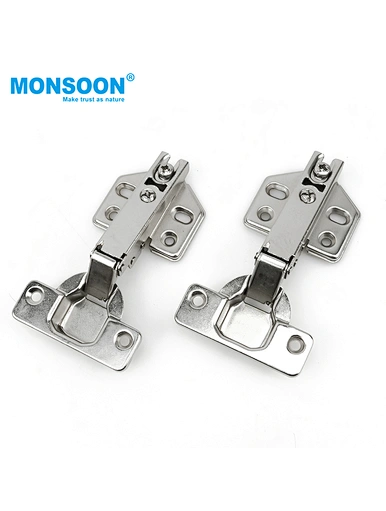

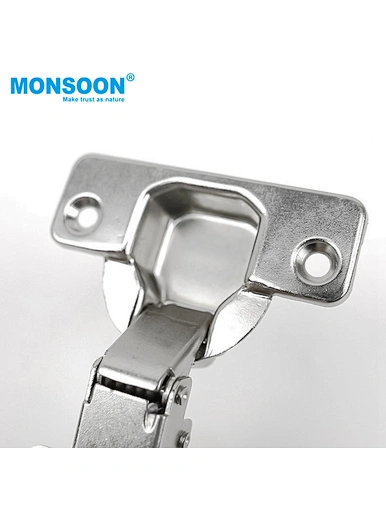

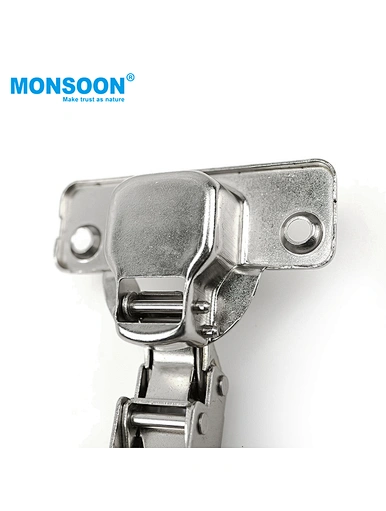

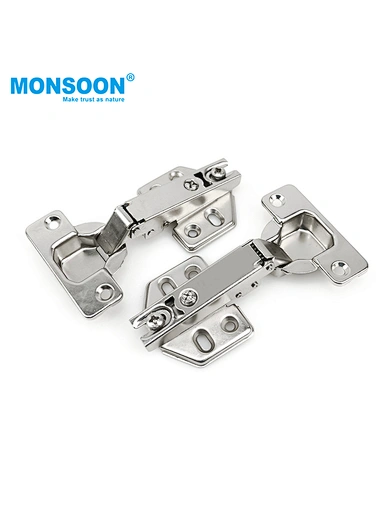

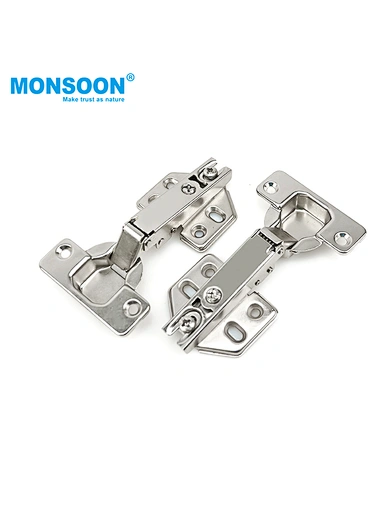

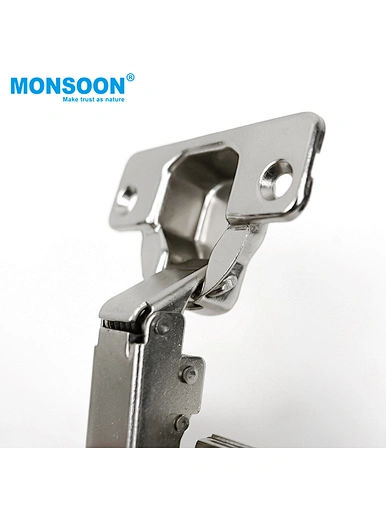

Type: 35mm Cup Slide On Soft Closing Cabinet Hinges

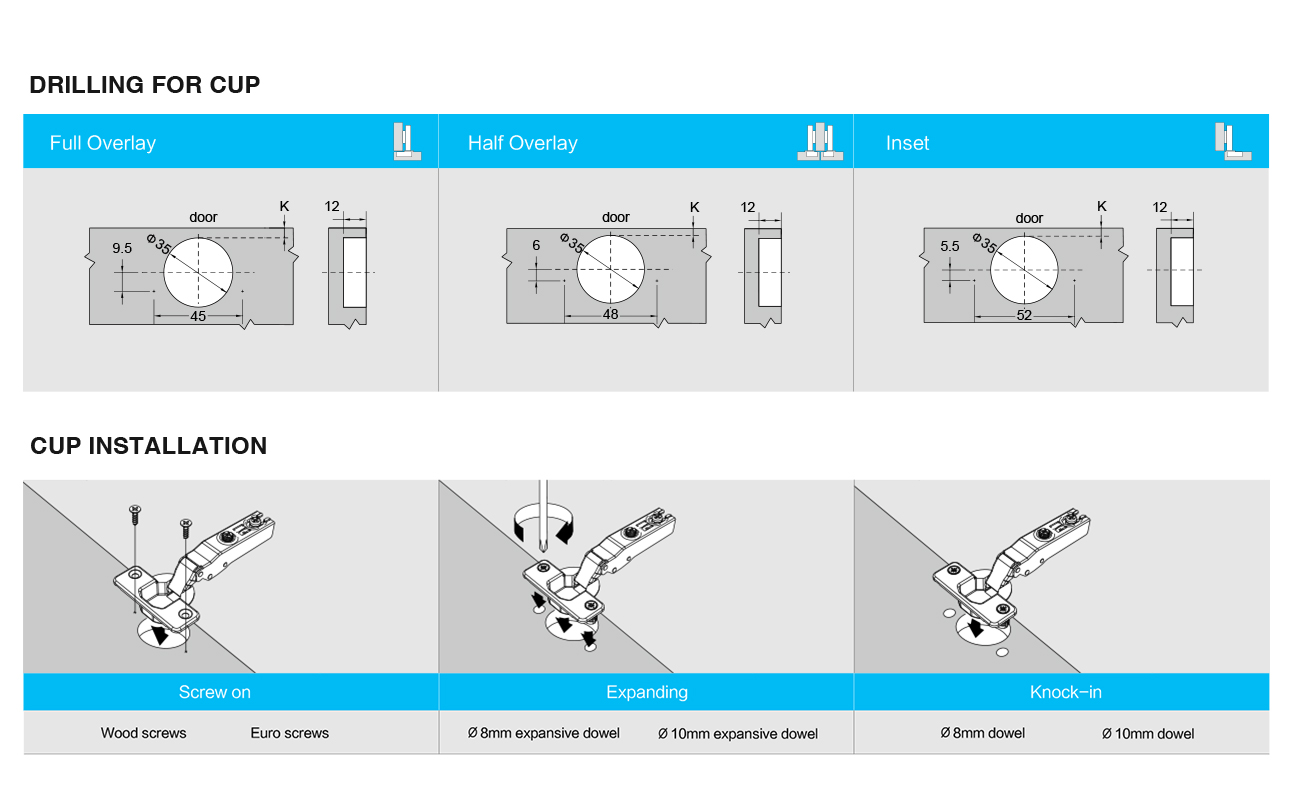

Cup diameter: 35mm

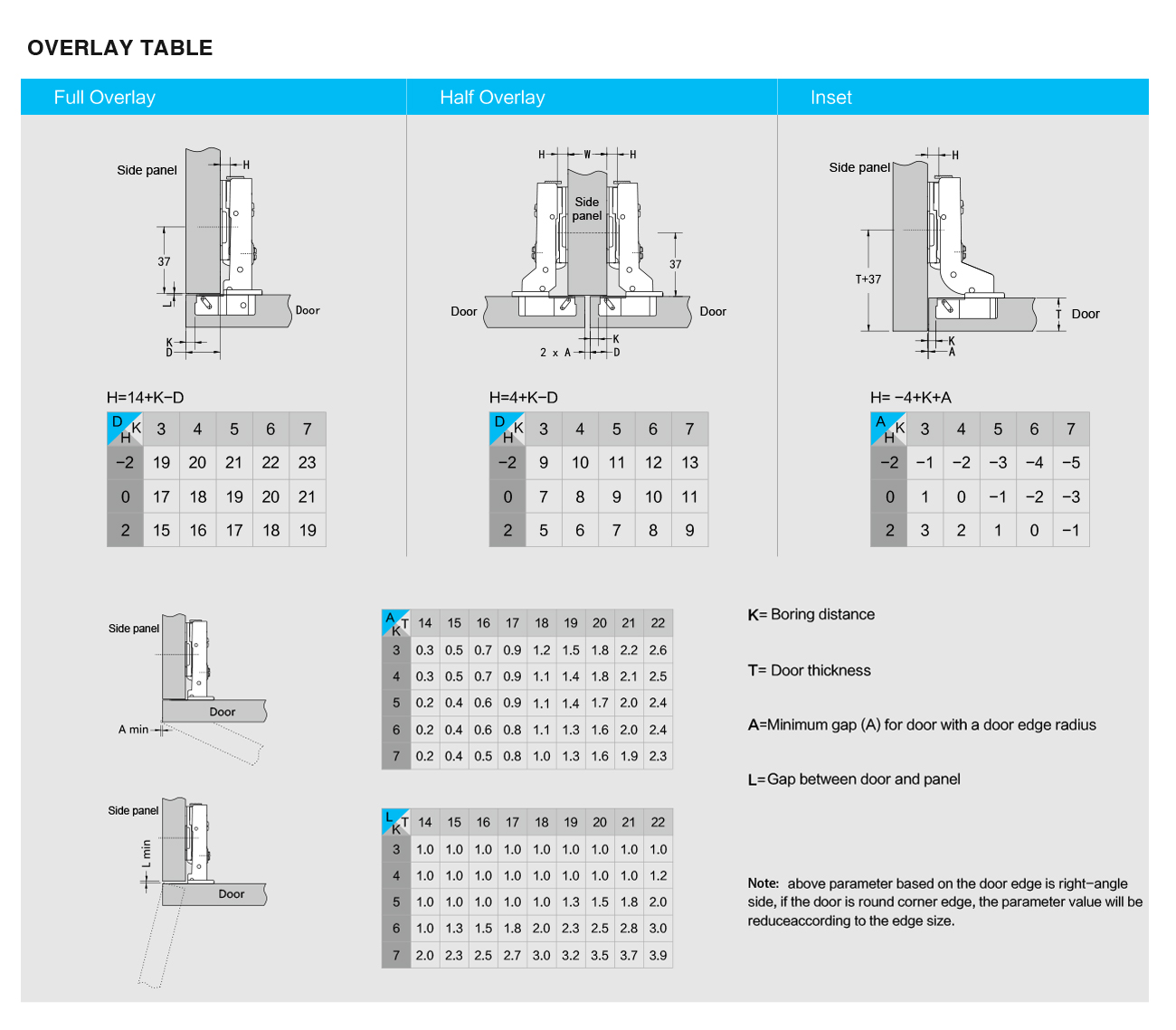

Overlay: Half overlay, full overlay, Insert
Opening angle: 105degree
Range for door thickness: 14-21mm
Optional function ：soft close or normal hinge
Material: Iron with nickel-plated
Finish: Nickel plated
Salt spray test: can reach grade 9 after 48 hours of test
Supply ability: 10,000,000pcs per month
Packing: 200 pcs per carton or according to clients' requirements.
Certificate: SGS ISO 9001:2000
Application: Furniture hinges, cabinet hinges, kitchen hinges, wardrobe, etc.
For Hardware Wholesalers: Looking for cabinet hinges at lower cost and high quality? Monsoon - a provider could offer hinge categories that fulfil different market requirements, satisfy your required hinge and whole solution of hinge marketing, providing competitive products and flexible packaging. Guaranteed quality control through the whole process, from raw material to finished product. Different testing at different stages to ensure product quality withstands a 48-hour salt spray test. We support different overlays for fulfilling different use occasions, and 100% meet market demand;
Differences between our products and other products
1. Higher standard U-pin. (8KG Thrust)
2. Much higher than the electroplating effect of peer products.
3. More high-purity metal materials ensure that the alloy buckle will never break.
4. We continue to upgrade the processs in order to saving costs for customers.
Our advantages
1. We offer higher quality products，in the products of same price.
2. We offer cheaper price，in the products of same quality.
3. Our factories are large in scale and highly automated. Perfect after-sales service and supporting services.
How can we create benefits for you？
1. We offer higher quality products，in the products of same price.
----Our company has requirements for U-shaped pin, and the thrust is required to reach 8kg.Under normal circumstances, the U-shaped pin
canbe used when the thrust reaches 6kg. Seller in the same industry don't pay attention to it. U-shaped needles often have problems, cabinet
doors will sink, there will be problems with closing, and abnormal noises. So we can provide better quality products.
----Our electroplating liquid will be replaced continuously, only a part of products will be electroplated each time, and a new electroplating
liquid will be replaced after a batch of products is electroplated, which makes our electroplating effect better. And while the cost of the
electroplating liquid increases, we do not add the cost to the customer's cost, but bear it internally. Our company vision is to be the most
satisfied hardware brand, so the product quality will be better at the same price.
----The company's control of product quality - we have professional quality check team.They will pay attention to the production of products
in factory , conduct irregular inspections, and at least 3 times inspections for each product to ensure product quality and delivery.The labor
costs of Q&C person is not added to the customer's cost, and the customer's cost has not increased, but the product quality is more guaranteed.
2. We offer cheaper price，in the products of same quality.
----Our company has a high degree of automation, high production efficiency, and a special person to monitor the production process, so the
product quality is stable, the production cost of the product is reduced, and the price of the product is cheaper.
----We have strong production capacity and a large amount of material procurement, and will carry out centralized procurement, which
will reduce the purchase price of our materials, thereby reducing the production cost of the product and the final product price.
Because the purchased materials are all in the same batch and the material density is the same, there is basically no deviation in the
product quality, and the quality provided is relatively better.
----The company's process upgrade: The original process uses rubber particles to fix the booster arm, which requires higher labor
costs and material costs, and the price is higher. The subsequent process upgrade uses thick nails to fix it, which is more stable and
saves labor costs. Lower prices and lower product prices. We still reserve two processes for customers to choose.
3. Build trust with professional knowledge and solve all customer needs.
----We have the best quality products, complete price concessions and additional value-added services after working with customers.
----We are a professional manufacturer of furniture hardware, which can provide customers with one-stop shopping for the products they need.
We have professionals to solve the complete needs of customers.
----We can provide customers with various information in the market, such as market hot products, material price trends, etc.,
and provide professional purchasing suggestions.
——
We want to be the most satisfied hardware brand，
Let customers buy the most cost-effective products.
