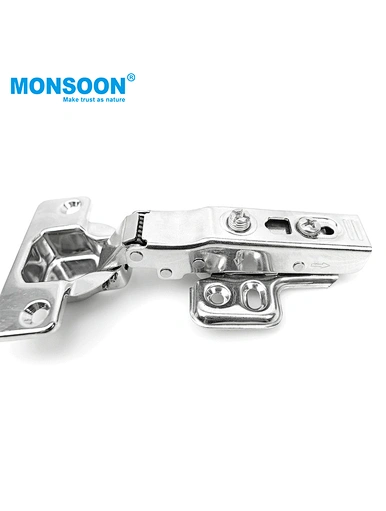

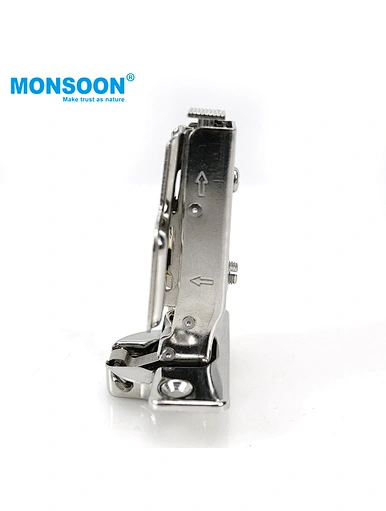

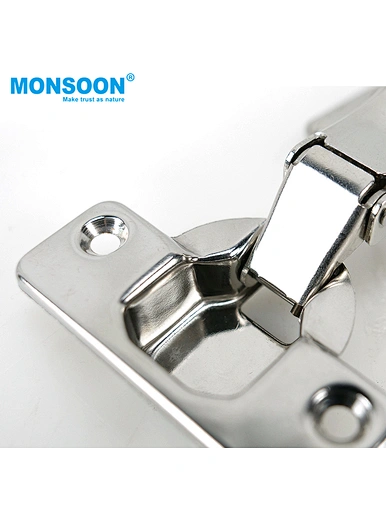

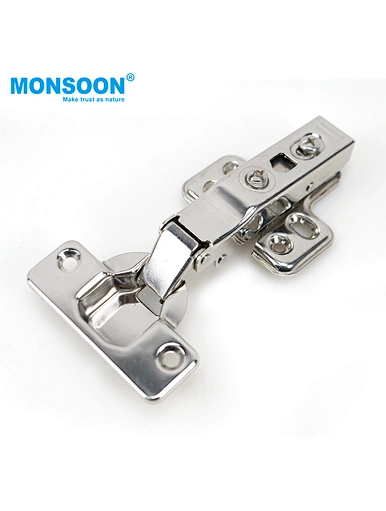

Type: 35mm one way clip on soft closing stainless steel hinge
Cup diameter: 35mm

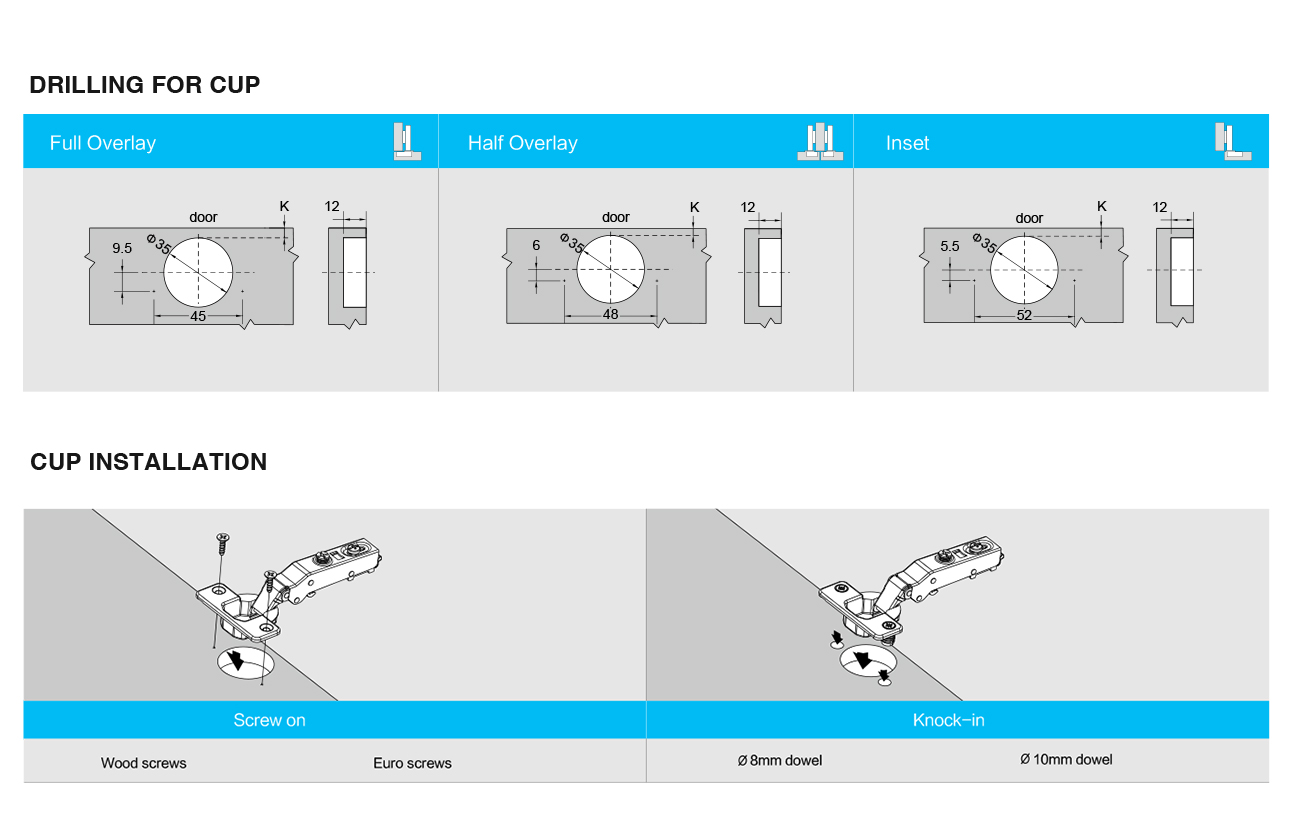

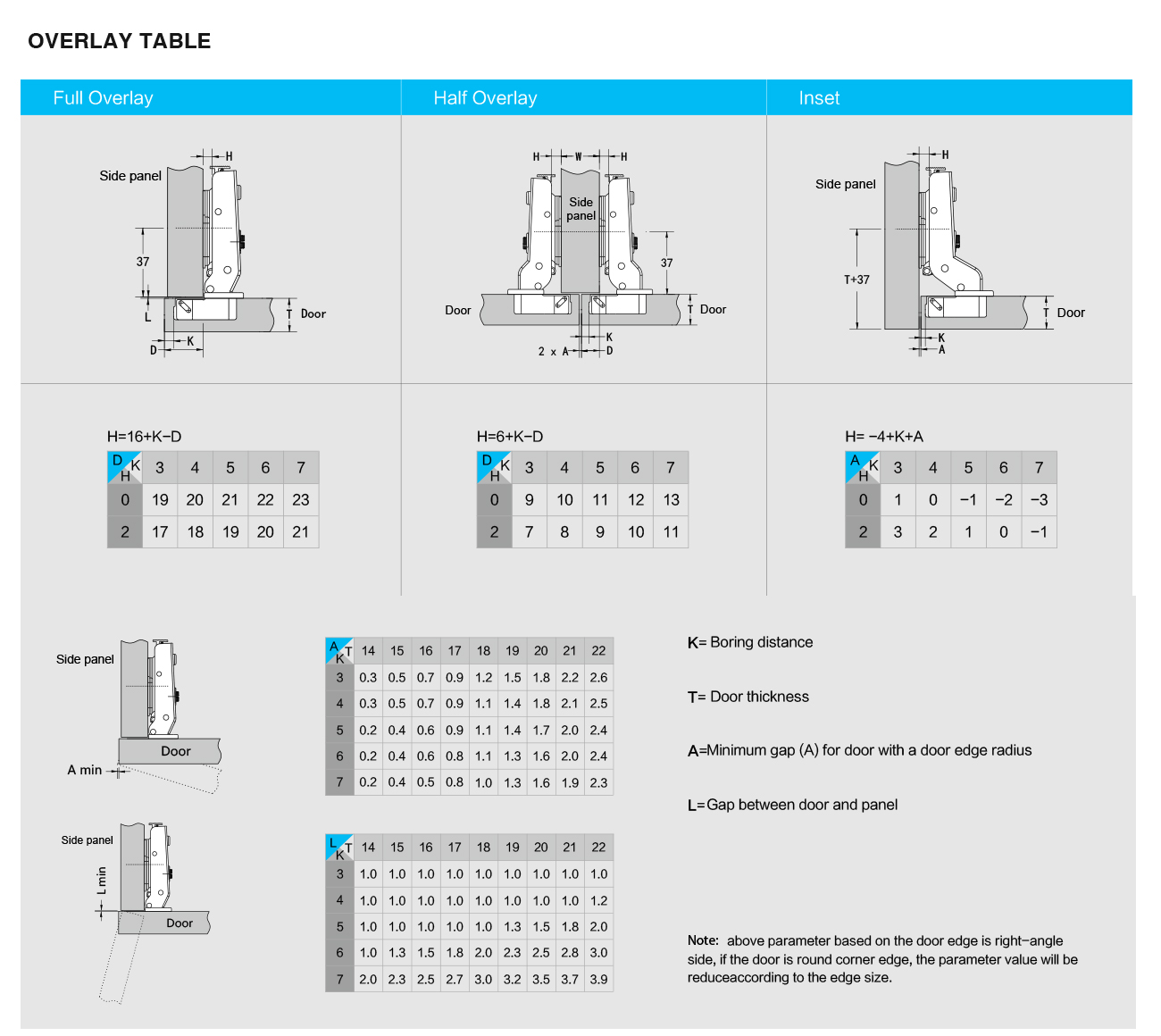

Overlay: Half overlay, full overlay, Insert
Opening angle: 95 degree
Range for door thickness: 12-22mm
Depth of hinge cup： 11.3mm
Optional function ：soft close, Clip on
Material: Iron with nickel-plated
Finish: Nickel plated
Salt spray test: can reach grade 9 after 48 hours of test

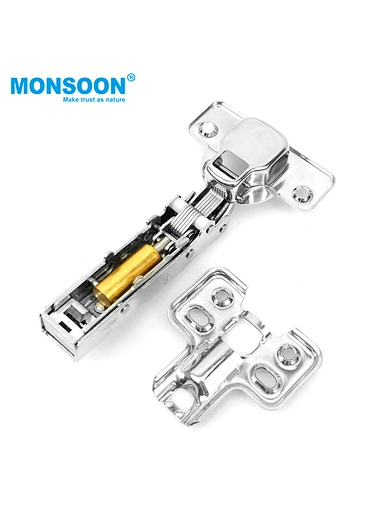

Optional plate: 4-hole plate
Supply ability: 10,000,000pcs per month
Packing: 200 pcs per carton or according to clients' requirements.
Certificate: SGS ISO 9001:2000
Application: Furniture hinges, cabinet hinges, kitchen hinges, wardrobe, etc.
For Hardware Wholesalers: Looking for cabinet hinges at lower cost and high quality? Monsoon - a provider could offer hinge categories that fulfil different market requirements, satisfy your required hinge and whole solution of hinge marketing, providing competitive products and flexible packaging. Guaranteed quality control through the whole process, from raw material to finished product. Different testing at different stages to ensure product quality withstands a 48-hour salt spray test. We support different overlays for fulfilling different use occasions and 100% meet market demand;
Differences between our products and other products
1. Higher standard U-pin. (8KG Thrust)
2. Much higher than the electroplating effect of peer products.
3. More high-purity metal materials ensure that the alloy buckle will never break.
4. We continue to upgrade the processs in order to saving costs for customers.
